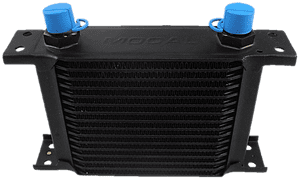

Mocal Oil Coolers (1)

Description

Mocal Oil Coolers are highly regarded all over the world. Speedflow enjoys full support & technical advice from Mocal regarding Mocal Oil Coolers and the entire range of Mocal products. This along with the established range of Speedflow associated products and our great levels of customer support means you are in safe hands when purchasing.

The Mocal Oil Cooler range has two matrix widths (open the thumbnails above to see size details) and come in many lengths that are measured in Rows. There are also several oil hose connection options.

If you need any advice regarding the version you require then call or email Speedflow - mwe don't charge for advice and we treat all enquiries the same.

Size and weight information for Mocal oil coolers

Oil Cooler Dimensions		115mm Matrix		235mm Matrix
No. of Rows	Height /mm	Capacity/ltrs	Weight/kgs	Capacity/ltrs	Weight/kgs
7 Row Oil Cooler	53mm	0.08	0.31	0.14	0.53
10 Row Oil Cooler	77mm	0.12	0.39	0.20	0.71
13 Row Oil Cooler	100mm	0.16	0.48	0.26	0.88
16 Row Oil Cooler	124mm	0.19	0.60	0.32	1.06
19 Row Oil Cooler	147mm	0.23	0.67	0.38	1.24
25 Row Oil Cooler	194mm	0.30	0.84	0.50	1.60
34 Row Oil Cooler	265mm	0.41	1.15	0.68	2.14
44 Row Oil Cooler	344mm	0.53	1.46	0.88	2.73
50 Row Oil Cooler	390mm	0.60	1.63	1.00	3.09
