LS Chevy V8 engine oil cooler kit - Billet oil take off, Stealth black hose ends

Oil cooler size
No. Hose Seperators
Hose no.1 first hose end type
Hose no.1 second hose end type
Hose no.1 overall length - seat to seat
Hose no.2 first hose end type
Hose no.2 second hose end type
Hose no2 overall length - seat to seat
Total length of hose used

Our Price: £315.83
LS Chevy V8 engine oil cooler kit - Billet oil take off, Stealth black hose ends
LS Chevy V8 engine oil cooler kit - Billet oil take off, Stealth black hose ends LS Chevy V8 engine oil cooler kit - Billet oil take off, Stealth black hose ends LS Chevy V8 engine oil cooler kit - Billet oil take off, Stealth black hose ends LS Chevy V8 engine oil cooler kit - Billet oil take off, Stealth black hose ends
Description

We believe this is the only engine oil cooler kit being offered from stock for the LS Chevy V8 in Europe. If your order arrives before 14:00hrs then it will be despatched the same day for next working day delivery - why wait for a delivery from the states that will cost you more, take longer to arrive and will not offer the same level of friendly customer support as our customers receive.

These kits utilise the very best components, no compromise on quality or specification. The hose ends are Stealth black anodised 100 series hose ends. The hose is Speedflow 100 series stainless steel nitrile rubber hose, it looks impressive and has a high wear resistance.

Please note - The billet oil take off for the LS Chevy (TVC15) has the additional facility of two 1/8NPT ports to allow temp or pressure sensors to be fitted or an oil take off for turbo or supercharger feed.

We make these kits to your specification and offer them at a reduced price when comparred to purchasing the components individually.

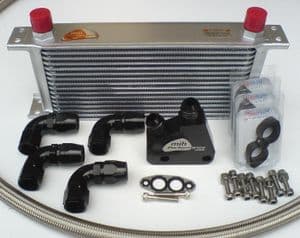

The kit includes the following as standard with options to change oil cooler size and to determine hose lengths.

If you are unsure of exact hose lengths we offer to fit up one end of the hose - send them to you so you can fit them up and mark exactly where the other ends need to be fitted. You send them back and we fit up the other missings ends at no additional cost - all you pay is the delivery charges.

Our engine cooler kit price is based upon the following specification, however there are many options for you to choose and they will highlight any price changes.

  • LS Chevy V8 oil take off adaptor. No thermostatic version available but an inline thermostat is an option due to the resticted space at the engine block
  • Adaptors - none required as these are part of the oil take off body and give -10 JIC male ports
  • Oil Cooler - comes with a 13 row 235mm matrix with an option for a 16 or 19 row 235mm matrix.
  • Stealth balck hose ends - comes with 4 x -10 90deg, but there is a choice of angles.
  • Speedflow hose - Stainless steel braided nitrile rubber hose -10 JIC, as standard we allow for 3mtrs.
  • Hose seperators - comes with three Stealth black anodised aluminium hose seperators to keep hoses tidy, you can have more if required
  • Fittings - Stainless steel M6 cap head bolts (x8), stainless steel M6 nylock nuts (x8) and stainless steel washers (x16) to secure the oil cooler in position.
  • Hose ends fitted to hose prior to despatch - ready for you to use.

The above parts list would normally retail in excess of £365.00, as a package we offer the above parts for £306.63 (inc making up hoses).

There are many options, including oil cooler size, hose end types, length of hose and how many hose separators you can have - these may vary the price and this will be shown against each option. Please use the boxes below to confirm your exact requirements, or call our office - we are pleased to assist and advise on the best choices for your application.

A specification summary and any price changes will be shown at the shopping cart.
