Laminova C43 Oil Cooler

Size and Oil Port Position Required
Water Connections Required
Oil Connections Required

Our Price: £231.99
Laminova C43 Engine & Transmission Oil Coolers - from Speedflow
Laminova C43 Engine & Transmission Oil Coolers - from Speedflow Laminova C43 Engine & Transmission Oil Coolers - from Speedflow Laminova C43 Engine & Transmission Oil Coolers - from Speedflow Laminova C43 Engine & Transmission Oil Coolers - from Speedflow
Description

Laminova C43 Oil to Water heat exchanger / Laminova oil cooler offers the ultimate method of oil and water harmonisation and quicker engine warm up that is commercially available. The three sizes have oil flow and water flow capacities to cover literally all requirements. If you are unsure of what size you need please call us, Speedflow, on 01934 684310 or send an email info@speedflow.co.uk

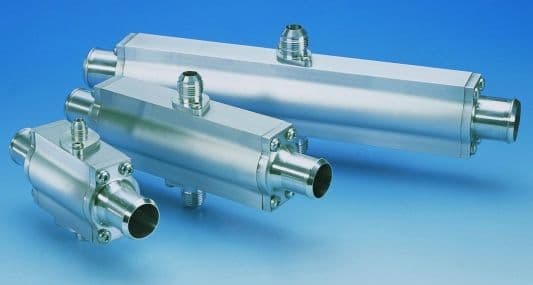

We have three lengths available:

  • Small C43-90, this has a 90mm core with in line oil connections
  • Medium C43 -182, this has a 182mm core and is available with in line or offset oil connection ports
  • Large C43-332, this has a 332mm core and is available with in line or offset oil connection ports

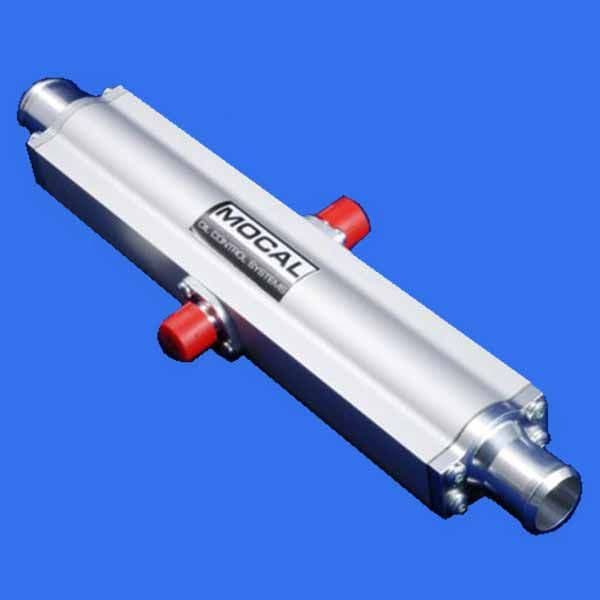

The C43 model is designed for engine or transmission cooling and as the name suggests it has a 43mm dia heat exchanger core. This allows engine coolant to flow through the centre and the oil flows over the outside. There are three core lengths and many different oil and water connection methods. Use the options above to confirm your requirements or contact Speedflow to discuss details.

All three Laminova C43 oil coolers come with the oil ports centered and in line as a default standard arrangement. You can have the C43 -182 (medium size) and C43-332 (large size) versions supplied with offset oil ports - one to the right and the other to the left.

The Laminova C43 range of oil coolers:

  • Are more resistant to crash damage than a regular oil cooler.
  • Can be dismantled for inspection or cleaning.
  • Harmonise coolant and oil temperatures throughout the engines operational cycle.
  • Can be fitted anywhere.

laminove drawing c43The main components are the housing and the core, both of which are aluminium extrusions. The oil connections and water connections can be changed easily.
The Laminova cores, through which the oil flows have been machined to provide fins 0.2 mm ( 7 thou) thick and 3mm high and spaced 0.3mm (11 thou) apart, such restrictive finning would normally cause a huge pressure drop, but by introducing channels in the finning, the oil flow is kept laminar as opposed to turbulent as in other cooler designs and the pressure drop remains low.
The coolant takes heat from the oil by flowing through the radial sections of the core. The large central part of the core is referred to as the 'coolant by-pass'.

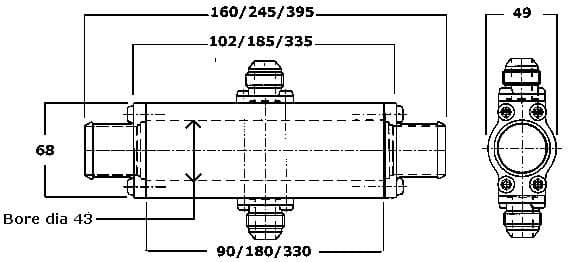

Laminova C43-90, C43-180 & C43-330 dimensions are shown here, overall lengths will vary depending on end fittings.

laminove c43 sizes

It is difficult to come up with meaningful performance figures for the Laminova C43 range as these are dependent upon oil and coolant flow figures that are rarely known. As a guide the C43-90 would give similar performance to a 10 row oil to air cooler, a C43-180 to a 16 row and a C43-330 to a 25 row.


Water connections available in these sizes and types 16mm push on, 18mm push on, 24mm push on, 28mm push on, 32mm push on, 32mm with a 90 deg elbow push on, 35mm push on, 38mm push on, 45mm push on, -16 AN / JIC, -20 AN / JIC and -24 AN JIC.
Oil connections for -06 AN / JIC, -08 AN / JIC, -10 AN / JIC, -12 AN / JIC and -16 AN / JIC.

Other sizes and types my be available to special order.

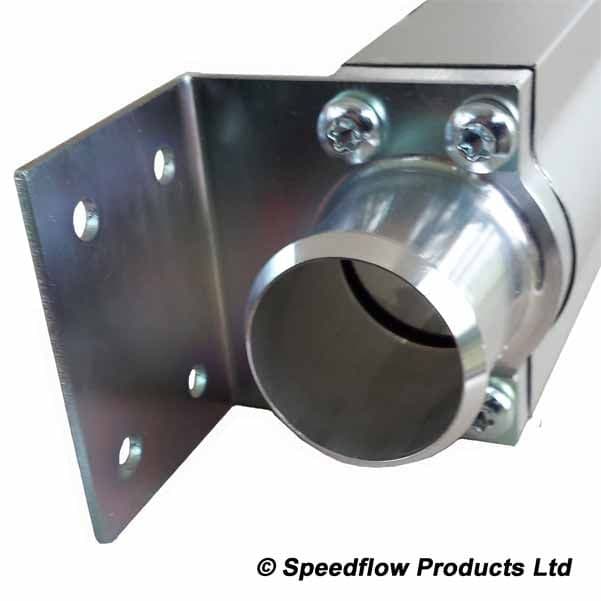

This product qualifies for FREE fixing brackets. Click here to see them

Please note, these are not next day delivery as each is fitted with the required connections to order. Generally it is a 48hr turnaround but please call if you need a confirmed delivery date.
