In line Tank Breather & Shut Off - 610-TPV8
Description
The 610-TPV8 fuel tank breather with shut off to stop fuel from exiting via the breather in a roll over or over fuelling situation. Under normal conditions the fuel tank is open to atmosphere and allowed to breathe. A vent pipe must be fitted to ensure fumes do not collect in the vehicle.
Is fitted in line and requires pipe with 8.00mm i.d. - This item is also available in -06 male.
Can be mounted in any position / angle. It is activated (it closes) with negative pressure of 0.08 p.s.i. or positive pressure of 0.725 p.s.i.

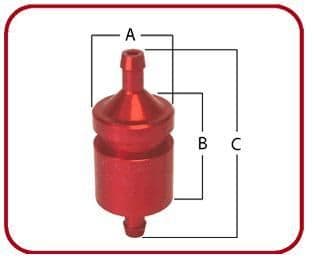

Specification for 610-TVP8
- Outside Diameter A = 31.0mm
- Internal body length B = 40.0mm
- Overall length C = 79.0mm
- Standpipe = 8.0mm
- Weight = 63g
- Material = Aluminium alloy 6082
- Finish = Anodised Red
Machined from aluminium with red anodised finish.
