Engine oil cooler kit - Mocal & Speedflow parts

Sandwich plate option
Oil cooler size
No. Hose Seperators
Seperator colour
Hose no.1 first hose end type
Hose no.1 second hose end type
Hose no.1 overall length - seat to seat
Hose no.2 first hose end type
Hose no.2 second hose end type
Hose no2 overall length - seat to seat
Total length of hose used
Sandwich plate adaptor colour

Our Price: £245.00
Description

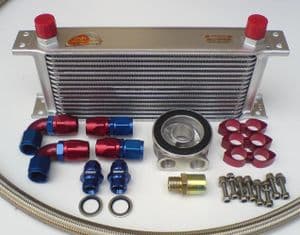

This kit uses Mocal oil control products and oil cooler -  Speedflow hose ends, hose and fittings, we utilise the very best components, no compromise on quality or specification. The hose ends are Speedflow 100 series hose ends, probably the best designed and consistently well made hose ends available. The hose is Speedflow 100 series stainless steel nitrile rubber hose, it looks impressive and has a high wear resistance.

We make this engine oil cooler kit to your specification and offer them at a reduced price when compared to purchasing the components individually.

If you are unsure of exact hose lengths we offer to fit up one end of the hose - send them to you so you can fit them up and mark exactly where the other ends need to be fitted. You send them back and we fit up the other missing ends at no additional cost - all you pay is the delivery charges.

Our engine cooler kit price is based upon the following specification, however there are many options for you to choose and they will highlight any price changes.

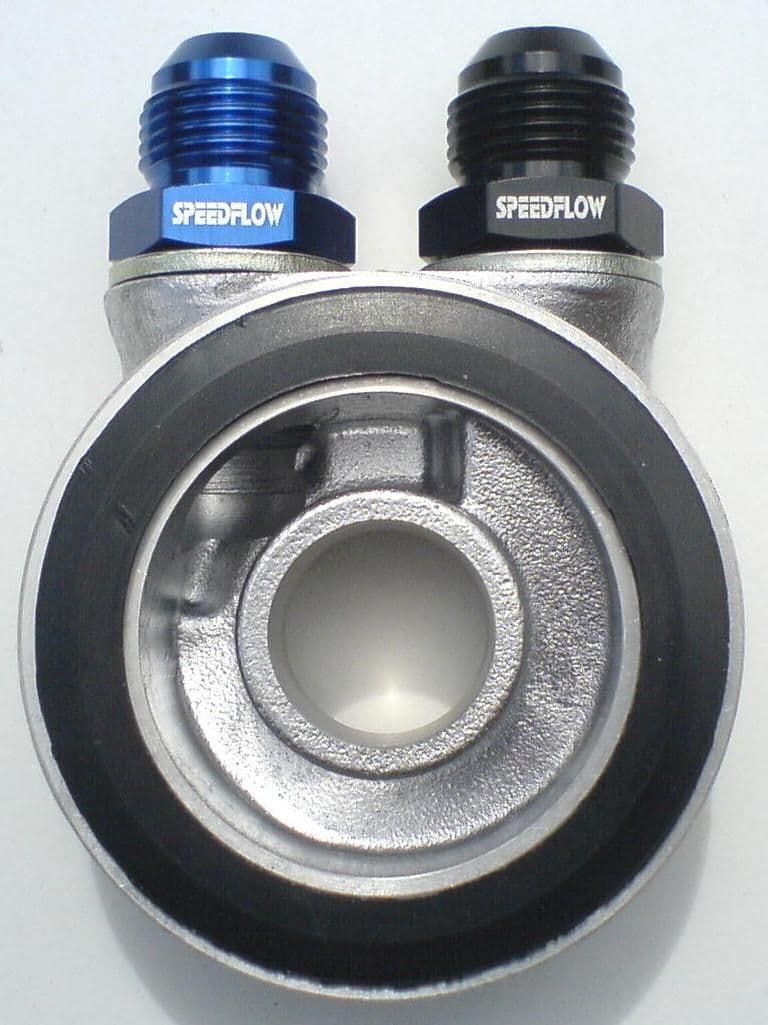

  • Sandwich plate - choice of threaded centre bolt - fits between oil filter and engine block/oil housing, an upgrade to thermostatically controlled is offered
  • Adaptors - Anodised aluminium adaptors that fit into the sandwich plate and give -10 JIC male fittings are included
  • Dowty washers - to seal the sandwich plate adaptors into the sandwich plate included

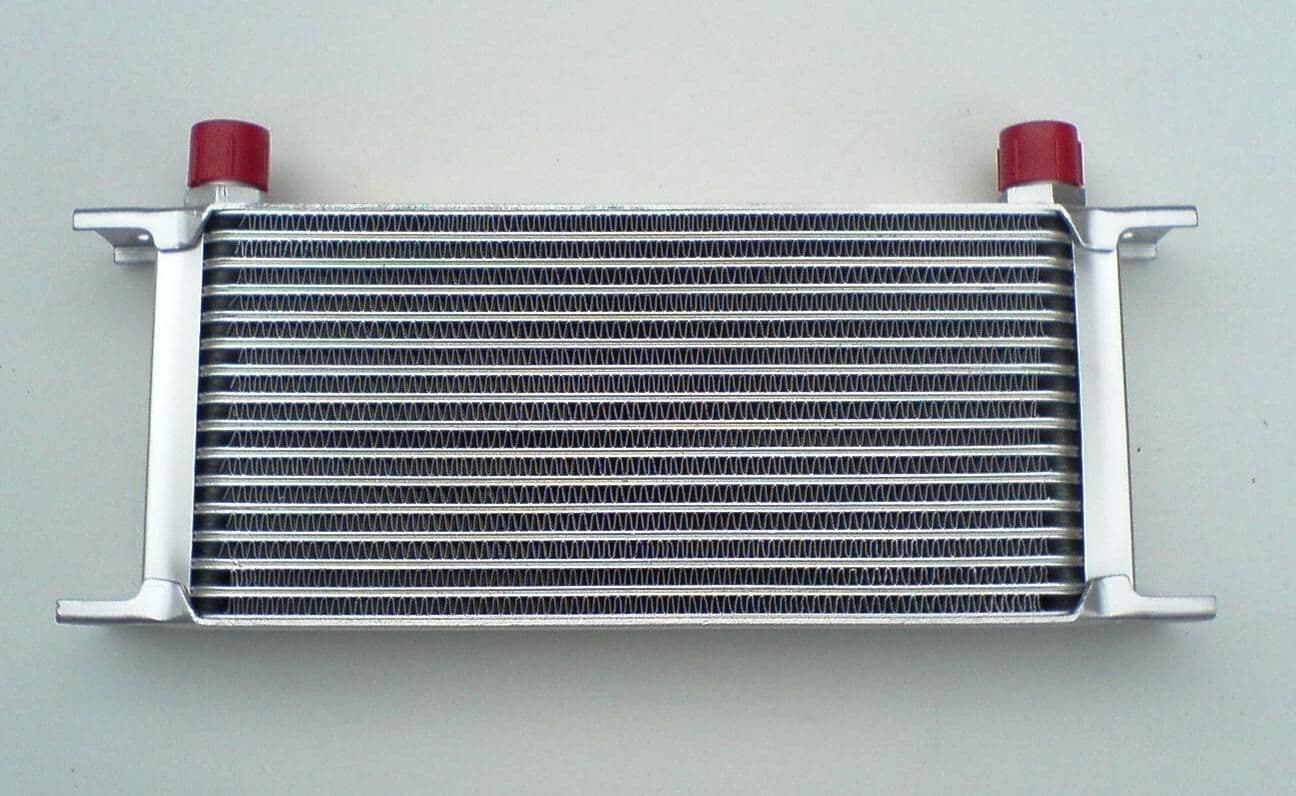

  • Oil Cooler - comes with a 13 row 235mm matrix with an option of 16 row or 19 row 235mm matrix.
  • Speedflow hose ends - comes with 2 x -10 straight and 2 x -10 90deg, but there is a choice of angles.
  • Speedflow hose - Stainless steel braided nitrile rubber hose -10 JIC, as standard we allow for 3mtrs.

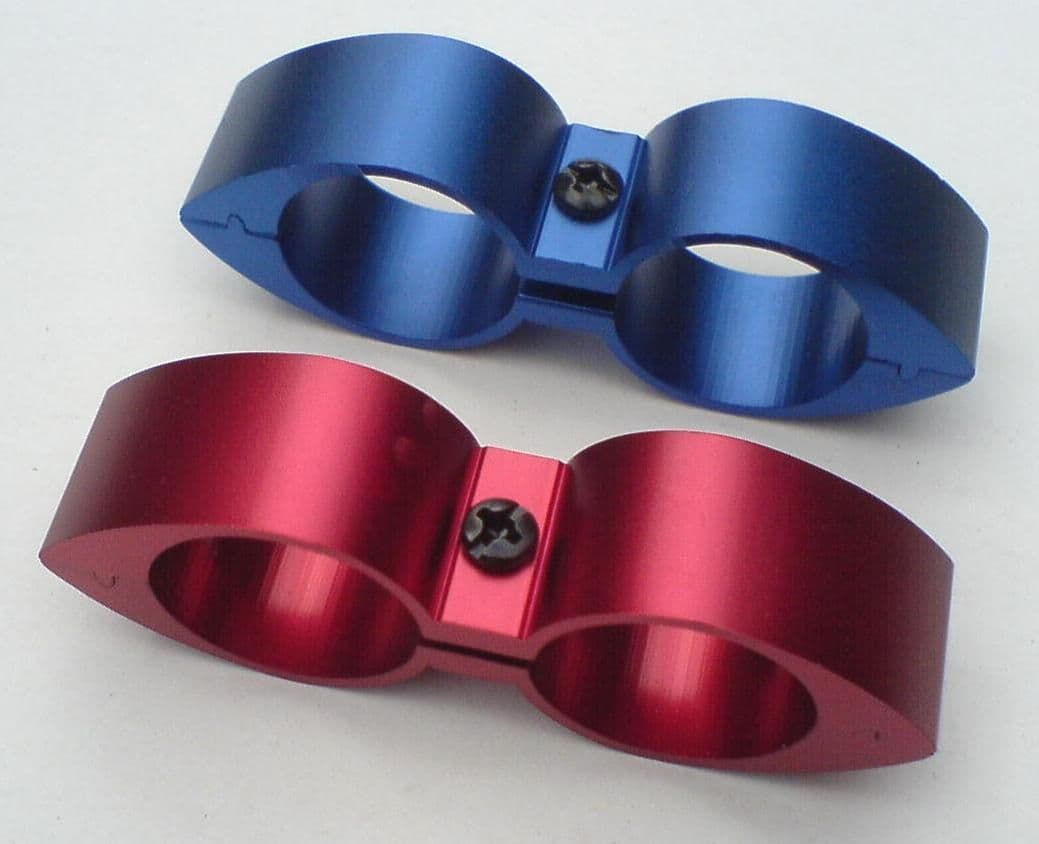

  • Hose seperators - comes with three anodised aluminium hose separators to keep hoses tidy (red or blue), you can have more if required
  • Fittings - Stainless steel M6 cap head bolts (x8), stainless steel M6 nylock nuts (x8) and stainless steel washers (x16) to secure the oil cooler in position.
  • Hose ends fitted to hose prior to dispatch - ready for you to use.

The above parts list would normally retail in excess of £305.00, as a package we offer the above parts for £305 (inc making up hoses).

There are many options, including oil cooler size, hose end types, length of hose and how many hose separators you can have - these may vary the price and this will be shown against each option. Please use the boxes below to confirm your exact requirements, or call our office - we are pleased to assist and advise on the best choices for your application.

A specification summary and any price changes will be shown at the shopping cart.
