9/16 UNF Tank Breather & Shut Off - 610-TRV67
Description
The 610-TRV67 fuel tank breather with shut off to stop fuel from exiting via the breather in a roll over or over fuelling situation. Under normal conditions the fuel tank is open to atmosphere and allowed to breathe. A vent pipe must be fitted to ensure fumes do not collect in the vehicle.
Requires 9/16 UNF female port (-6 AN) to fit into. Could be fixed with nut if access to the inside of tank is possible.
Specification for 610-TRV67

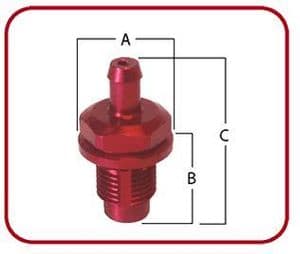

- Outside Diameter A = 22.0mm
- Internal body length B = 18.0mm
- Overall length C = 39.0mm
- Thread = 9/16 UNF same as -6 AN female
- Standpipe = 7mm
- Weight = 14g
- Mounting hole size = 9/16
- Material = Aluminium alloy 6082
- Finish = Anodised Red
- Flow Capacity = 0.8ltrs/sec
Machined from aluminium with red anodised finish.
