3/4 UNF Tank Breather & Shut Off - 610-TRV86
Description
The 610-TRV86 fuel tank breather with shut off to stop fuel from exiting via the breather in a roll over or over fuelling situation. Under normal conditions the fuel tank is open to atmosphere and allowed to breathe. A vent pipe must be fitted to ensure fumes do not collect in the vehicle.
Requires 3/4 UNF female port (-8 AN) to fit into. Could be fixed with nut if access to the inside of tank is possible.
Specification for 610-TRV86

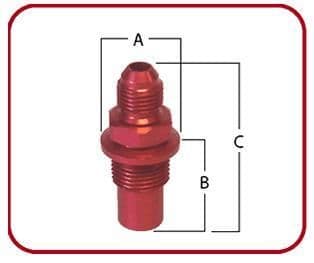

- Outside Diameter A = 25.0mm
- Internal body length B = 28.0mm
- Overall length C = 55.0mm
- Tank thread = 3/4 UNF same as -8 AN
- Outlet thread = 9/16 UNF same as -6 AN
- Weight = 26.5g
- Mounting hole size = 3/4
- Material = Aluminium alloy 6082
- Finish = Anodised Red
- Flow Capacity = 1.0ltrs/sec
Machined from aluminium with red anodised finish.
