11mm Tank Breather & Shut Off - 610-TRV45


Our Price: £27.21
Description

The 610-TRV45 fuel tank breather with shut off to stop fuel from exiting via the breather in a roll over or over fuelling situation. Under normal conditions the fuel tank is open to atmosphere and allowed to breathe. A vent pipe must be fitted to ensure fumes do not collect in the vehicle.

Mounting hole 7/16 inch / 11 mm size. Access to the inside of the tank is required for installation.

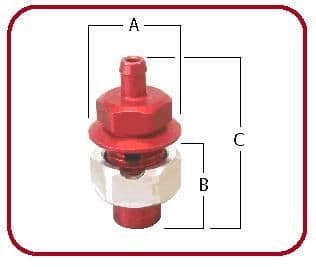

Specification for 610-TRV45

  • Outside Diameter A = 17.5mm
  • Internal body length B = 18.5mm
  • Overall length C = 33.5mm
  • Thread = 7/16UNF same as -04 AN
  • Standpipe = 4.7mm
  • Weight = 9.5g
  • Mounting hole size = 11.4mm
  • Material = Aluminium alloy 6082
  • Finish = Anodised Red
  • Flow Capacity = 0.6ltrs/sec

Machined from aluminium with red anodised finish.
