11mm Tank Breather & Shut Off - 610-THV45

Our Price: £28.02

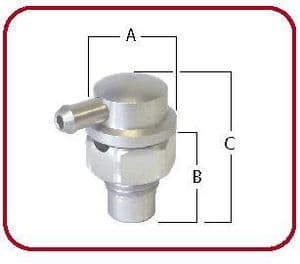

11mm Tank Breather & Shut Off - 610-THV45 - Speedflow

The 610-THV45 fuel tank breather with shut off to stop fuel from exiting via the breather in a roll over or over fuelling situation. Under normal conditions the fuel tank is open to atmosphere and allowed to breathe. A vent pipe must be fitted to ensure fumes do not collect in the vehicle.

Mounting hole 7/16 inch / 11 mm size. Access to the inside of the tank is required for installation.

Specification for 610-THV45

  • Outside Diameter A = 17.5mm
  • Internal body length B = 18.5mm
  • Overall length C = 29.0mm
  • Thread = 7/16UNF same as -04 AN
  • Standpipe = 4.7mm
  • Weight = 10.5g
  • Mounting hole size = 11.4mm
  • Material = Aluminium alloy 6082
  • Finish = Anodised Silver
  • Flow Capacity = 0.5ltrs/sec

Machined from aluminium with Silver anodised finish.
